GaiaRay Fast Charging Power Bank Large Capacity Outdoor Power Supply
GaiaRay Fast Charging Power Bank Large Capacity Outdoor Power Supply
Couldn't load pickup availability
Power up anywhere with GaiaRay Fast Charging Power Bank — a rugged, high-capacity outdoor power supply you can rely on.
- Choose from LiFePO4 batteries of 76.8Wh, 230Wh, or 460Wh and get 100W, 300W, or 500W AC output in either modified or pure sine wave.

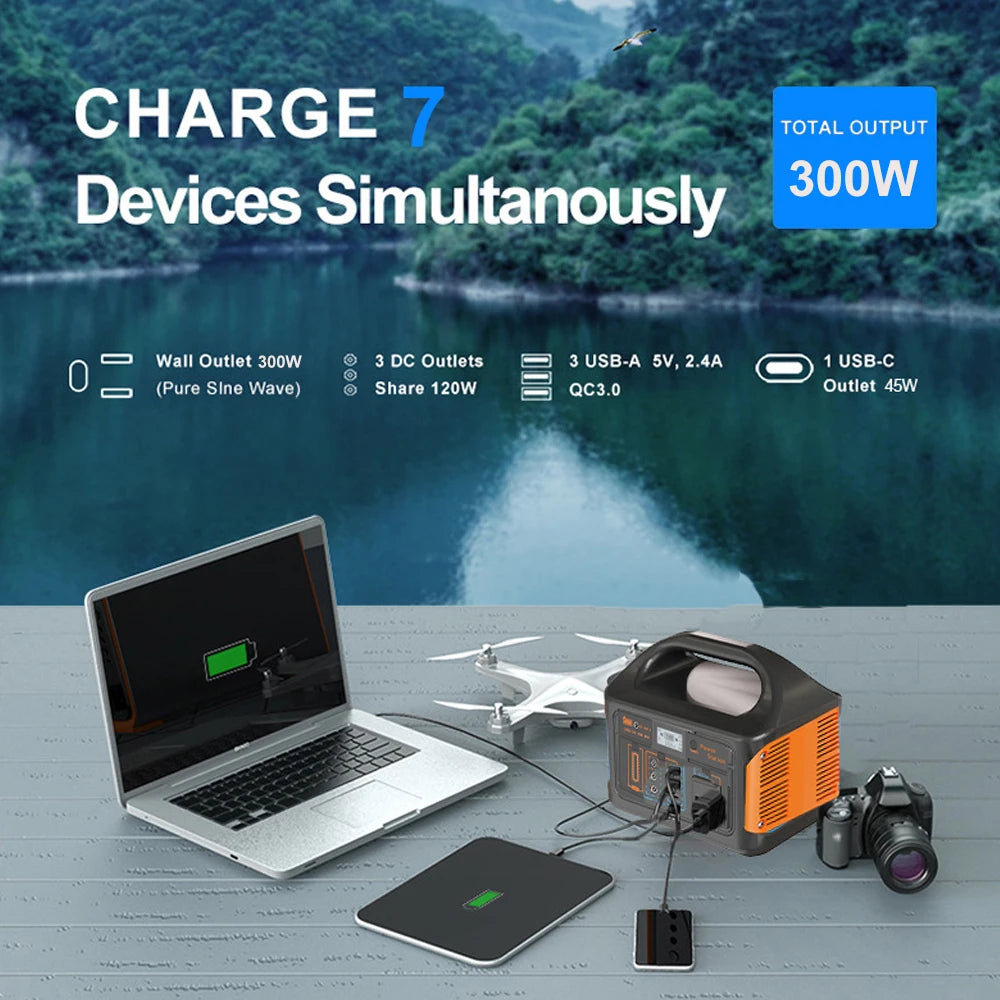

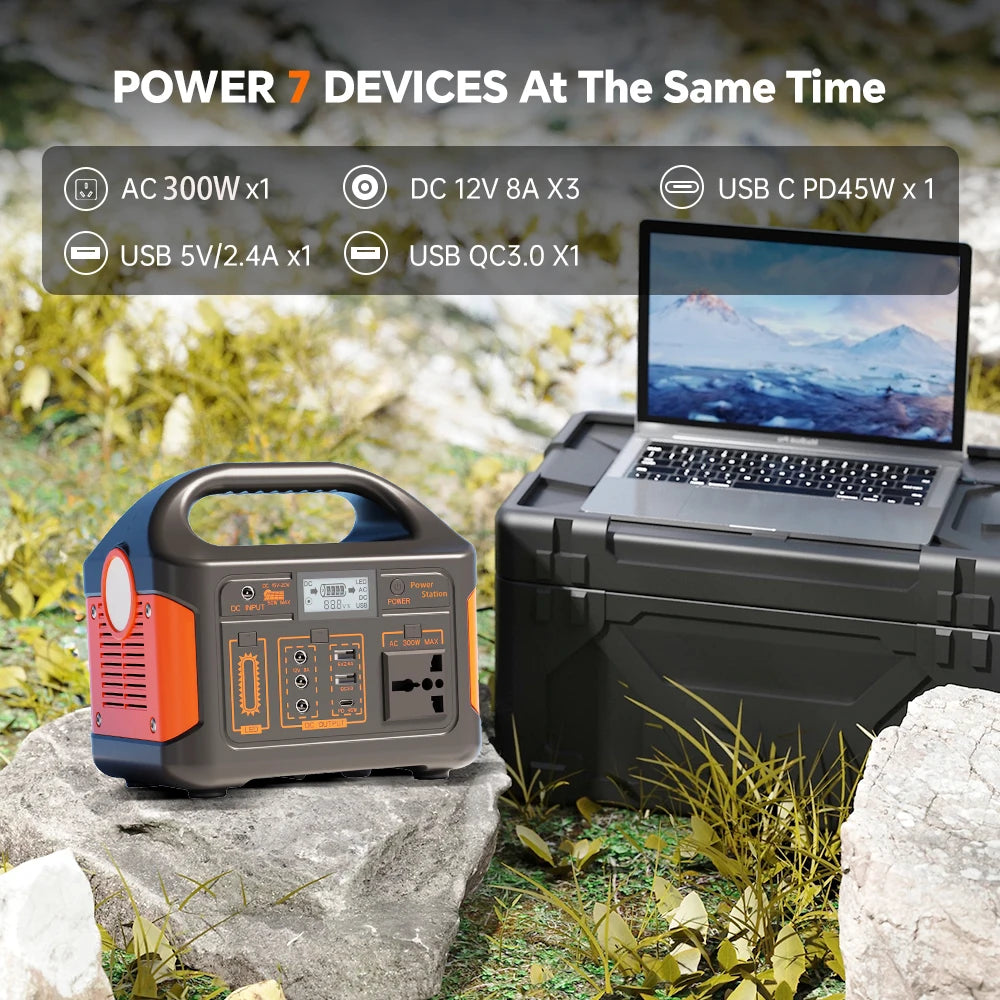

- Connect with two USB 5V/2.4A ports, three DC5521 12V outputs, plus USB-C PD up to 45W and QC 3.0 for fast charging.
- Solar charging uses a built‑in intelligent controller with 15–20V panels; max input 30W/50W/90W by model, and an LCD shows voltage and state of charge.
- Safety and efficiency: >90% conversion, protection from voltage, overload, and temperature, cooling fan <45 dB, in three sizes: 160×100×143 mm, 211×160×196 mm, 271×172×220 mm.
Rated Power |
100W |
300W |
500W |
Output Waveforr |
Modified sine wave |
Pure Sine Wave |
|
AC Output Voltage |
110V,220V |
||
AC Output Frequency |
50Hz/60Hz ± 0.5Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||
Charging interface |
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller) |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521 |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port |
|
LED Light States |
LED bright, half bright, flashing,LED off 4 states |

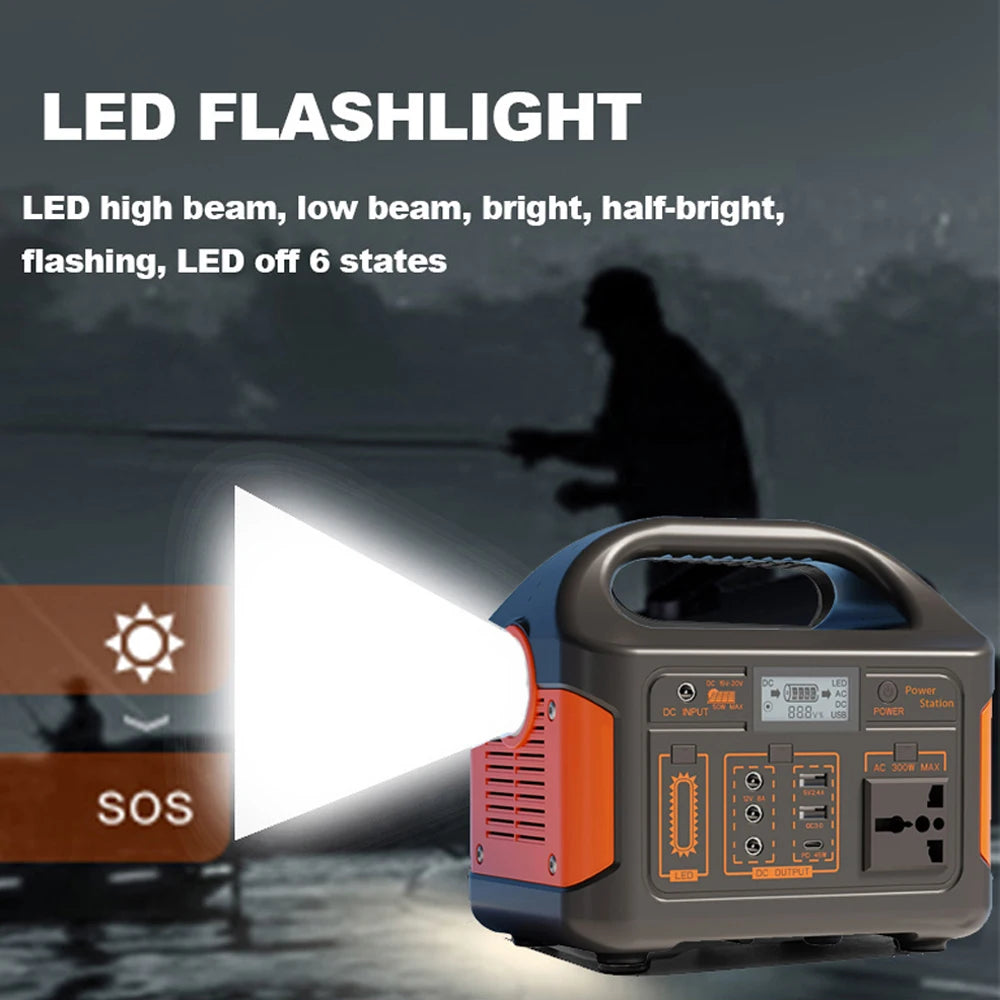

LED high beam,low beam. Bight, half Bight, fishing LED of 6 states |
|
Battery Type |
LiFePO4 |
||
Battery Capacity |
76.8Wh |
230Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |
Product size (mm) |
160*100*143mm |
211*160*196mm |
271*172*220mm |
Outer packaging size (mm) |
200*100*150mm |
260*160*200mm |
300*200*260mm |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours OT |
||

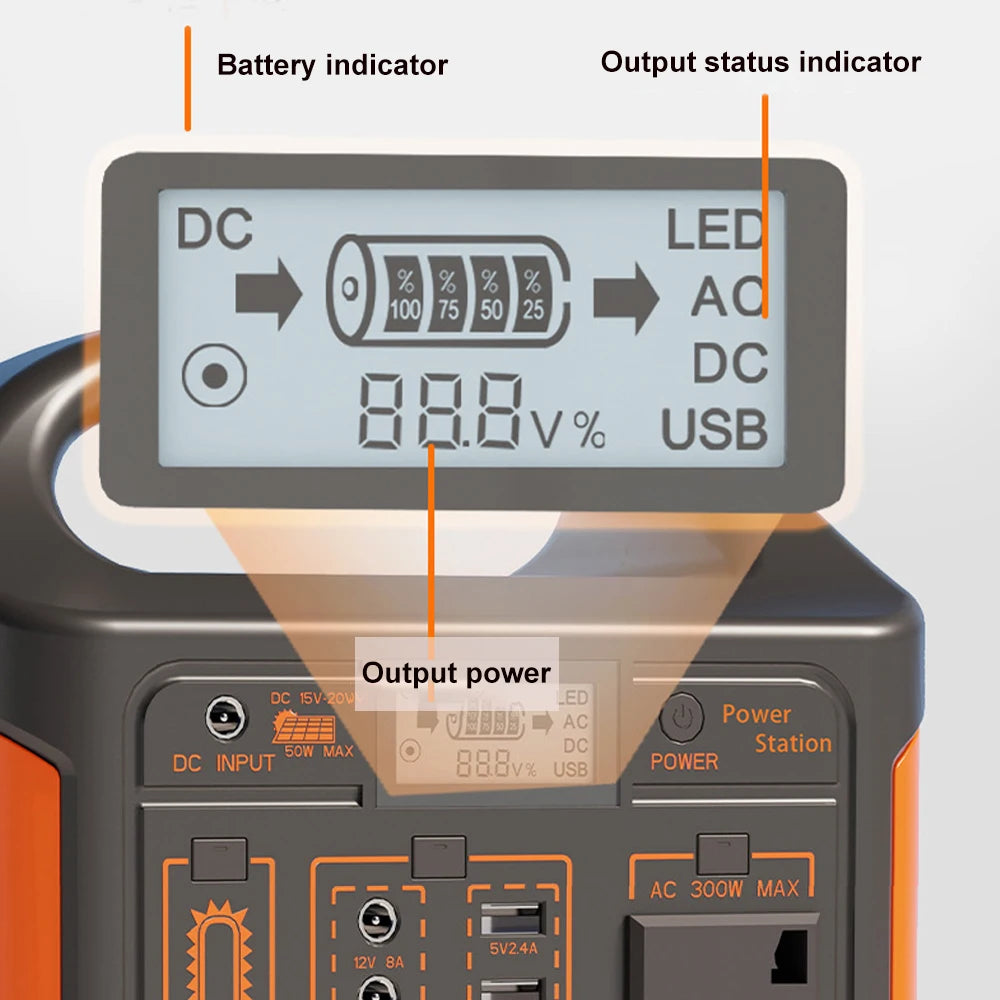

LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
||
Heat Dissipation |
Intelligent Temperature Control Cooling Fan |
||
Noise |
1Meter Distance <45dB |
||
Protection Functions |

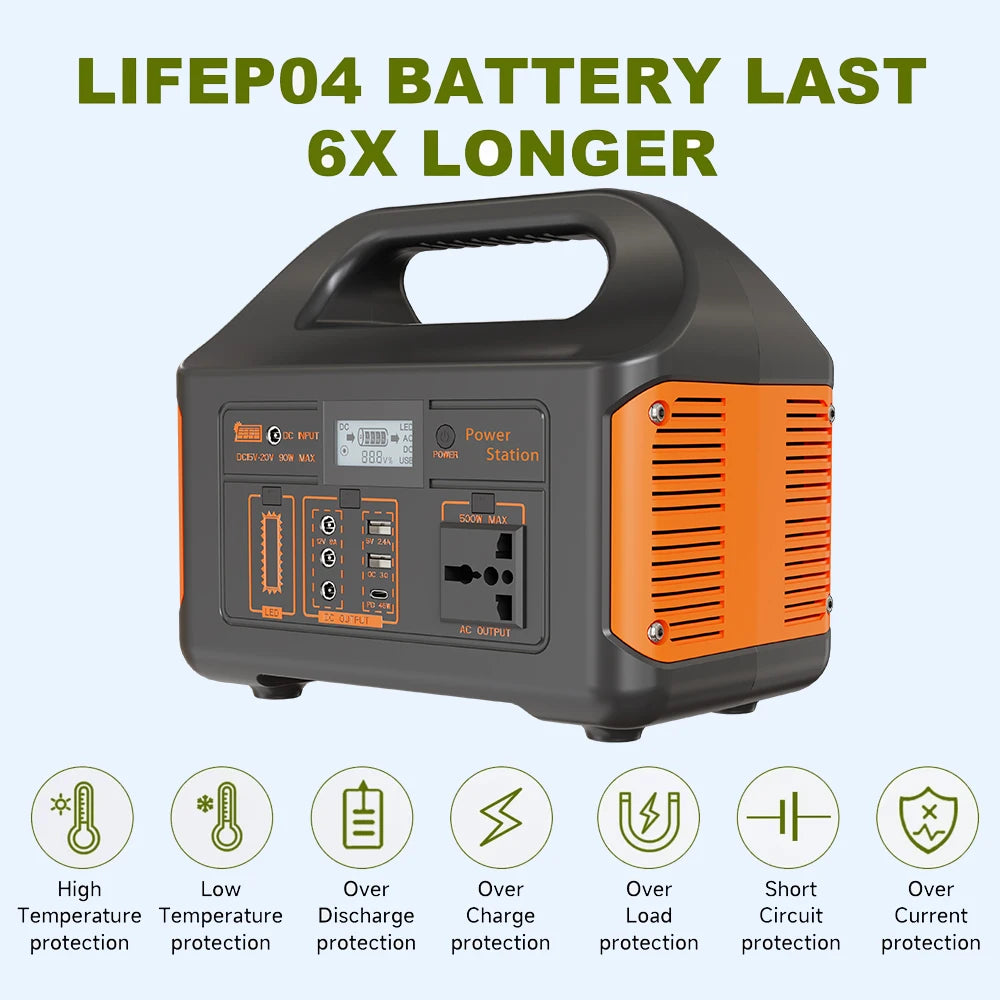

Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit |
||
